Airtightness Testing Under NFPA 2001: The Invisible Guardian of Clean Agent Fire Suppression Systems

The effectiveness of a suppression agent depends not only on the agent itself but also on the airtightness of the protected space. Door Fan Test is the most mature internationally accepted method per NFPA 2001 and ISO 14520, precisely calculating agent hold time.

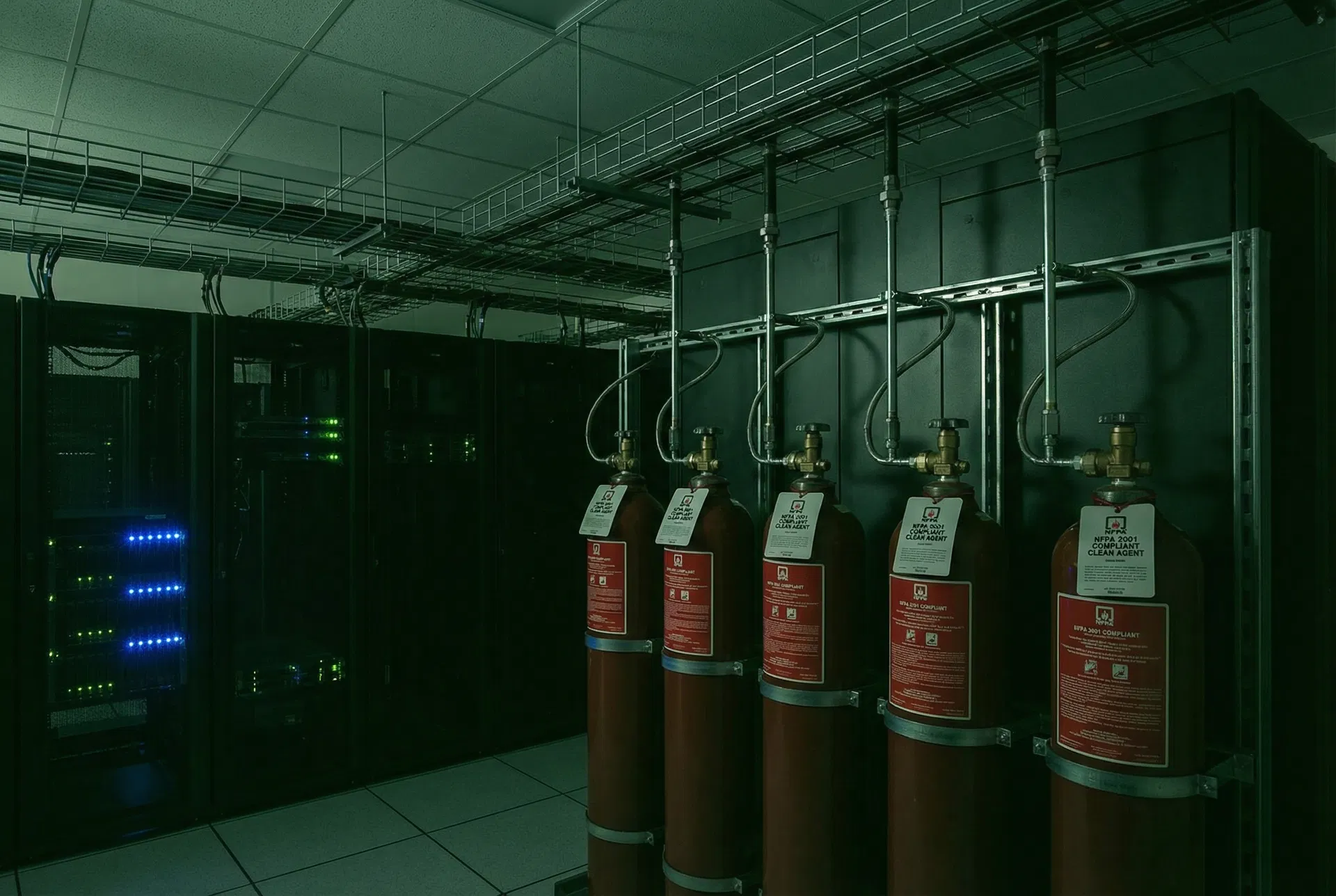

Clean Agent Fire Suppression Systems are the preferred fire suppression method for high-value asset areas such as data centers, semiconductor facilities, and archive rooms. Unlike water sprinkler systems, clean agent systems extinguish fires by rapidly establishing and maintaining a certain concentration of suppression agent gas within the protected space, without causing water damage to sensitive equipment. However, the effectiveness of this suppression method is highly dependent on the airtightness of the protected space — if the space has significant leakage, the agent concentration cannot be maintained for the required duration and the system will fail.

NFPA 2001 Requirements for Airtightness Testing

NFPA 2001, Standard on Clean Agent Fire Extinguishing Systems, is the most widely adopted design and acceptance standard for clean agent fire suppression systems worldwide. The standard explicitly requires that before a clean agent system is placed in service, the protected space must undergo airtightness testing to verify that it can maintain effective suppression agent concentration for the specified 'hold time' — typically 10 minutes.

Door Fan Test: The Most Mature Airtightness Testing Method

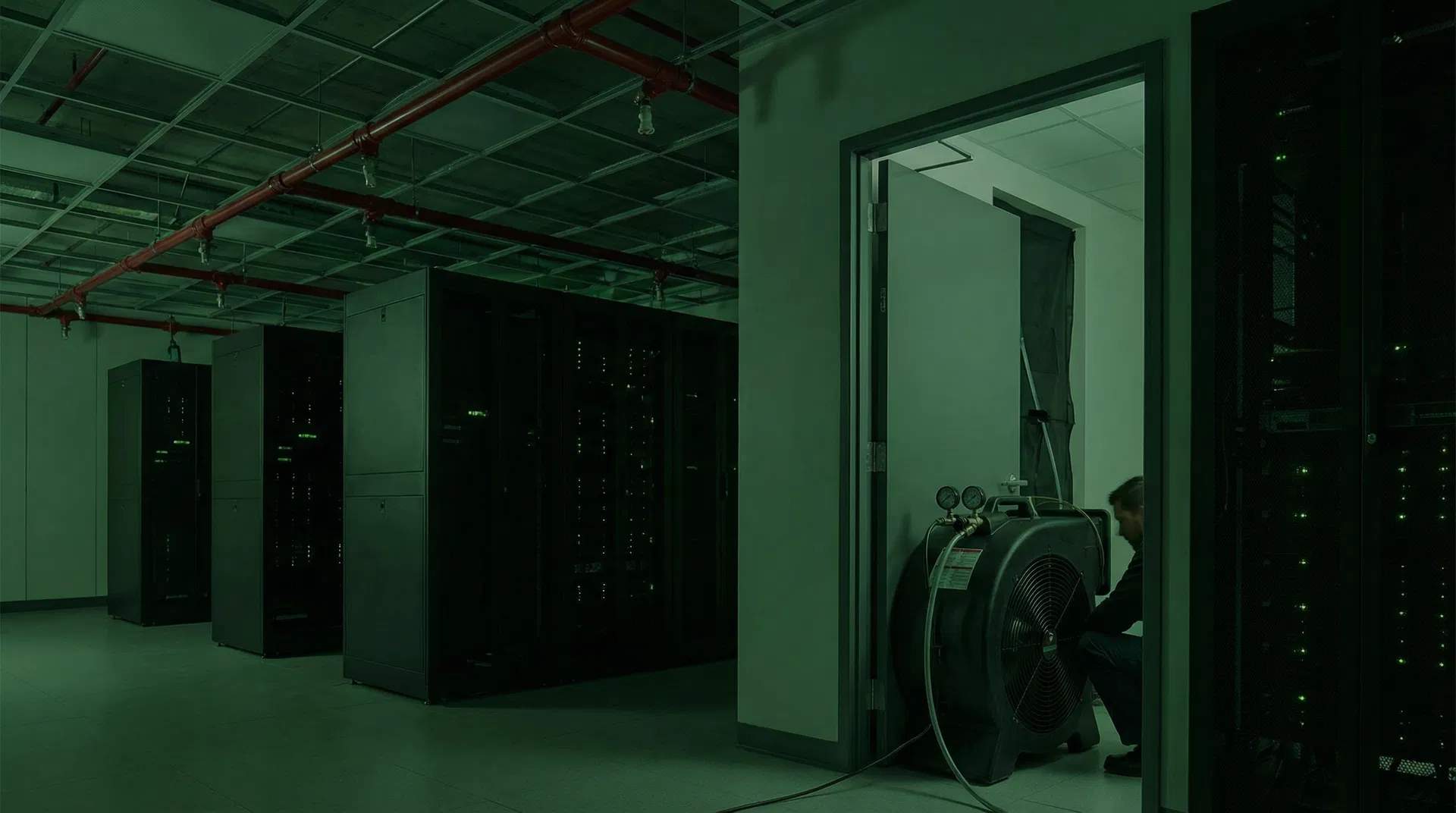

The Door Fan Test is currently the most mature and widely adopted method for testing protected space airtightness internationally, explicitly accepted by both NFPA 2001 and ISO 14520. The basic principle is: a variable-speed fan is installed in the doorway of the protected space; by pressurizing or depressurizing the space, the air leakage at a specific pressure differential is measured, the equivalent leakage area of the protected space is calculated, and the suppression agent concentration hold time is derived based on the physical properties of the agent.

Interpretation and Application of Test Results

Door Fan Test results are typically expressed as Equivalent Leakage Area (ELA). Based on the ELA value and the physical properties of the suppression agent, the hold time of the protected space at a specific agent concentration can be calculated. If the hold time meets NFPA 2001 requirements — typically 10 minutes — the protected space's airtightness is acceptable. If not, the space must be sealed and improved until requirements are met.

OKRO's ILAC-Accredited Airtightness Testing Service

OKRO holds ILAC-accredited airtightness testing inspection qualifications and can provide professional Door Fan Test services for clients in accordance with NFPA 2001, ISO 14520, and other international standards, issuing inspection reports with international validity. OKRO's testing team uses calibrated professional testing equipment and executes tests according to standardized procedures, ensuring the accuracy and repeatability of test results.

The effectiveness of a gas suppression system is half determined by system design and half by the airtightness of the protected space.

For facilities with installed clean agent fire suppression systems, periodic re-testing — typically every 5 years — is recommended to confirm that the protected space's airtightness has not changed due to building renovations, equipment replacements, or other factors, ensuring the continued effectiveness of the suppression system.
